The building in Bavaria is supplied with electricity by the in-house water wheel.
The system works off-grid with a 48V DC battery storage system.
The generator continuous output here is approx. 2.3 kW @ 50V DC.

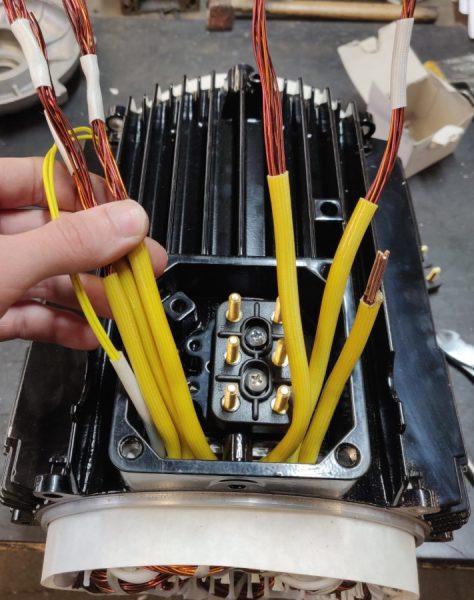

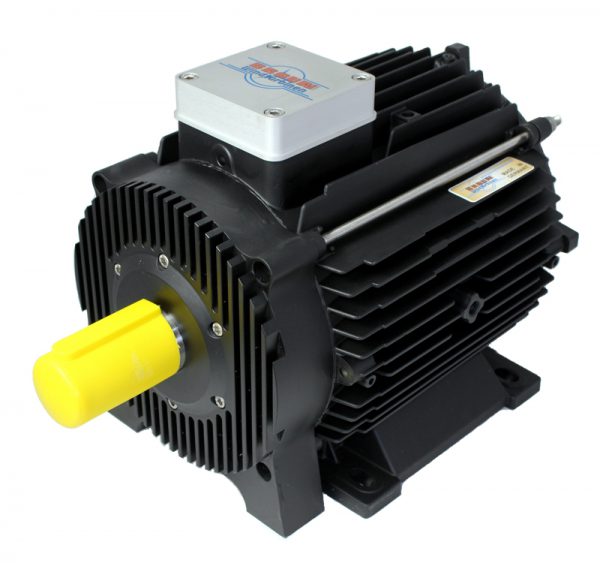

In the generator of the CK series (CK7.5) a corresponding winding was inserted,
so that at 46A continuous current there is no too high heating.
Respect for the MA in the anchor wrapping!

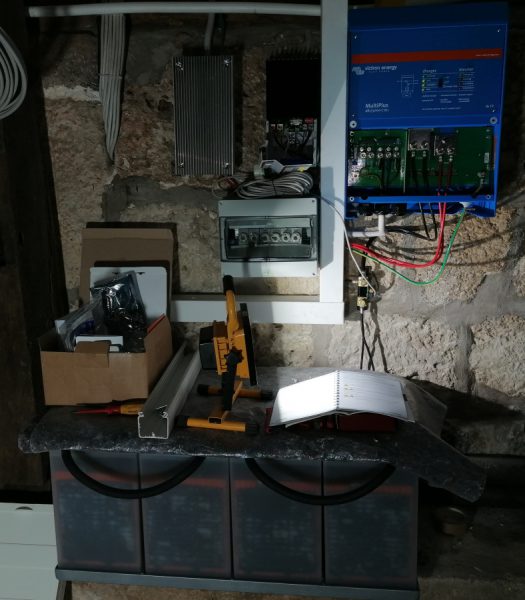

The Tristar is installed as the charge controller, and excess energy is diverted to a heating element.
The grid power is provided by the Victron Energy.
https://www.morningstarcorp.com/de/products/tristar-mppt-de/
https://www.victronenergy.de/inverters-chargers/multiplus-12v-24v-48v-800va-3kva
If you have any questions about the project, please give us a call!
